chrono::fea::ChInertiaCosseratUniformDensity Class Reference

Description

Inertia properties of a beam of Cosserat type, defined from an uniform density [kg/m^3], and the following geometric information:

• a section area
• Iyy Izz second moments of area The polar moment of area is automatically inferred via perpendicular axis theorem, Ip=Iyy+Izz. The section is assumed aligned to principal axis of the moment of area tensor, ie. Iyz=0, the section is assumed to be centered in the center of mass.

#include <ChBeamSectionCosserat.h>

Inheritance diagram for chrono::fea::ChInertiaCosseratUniformDensity:

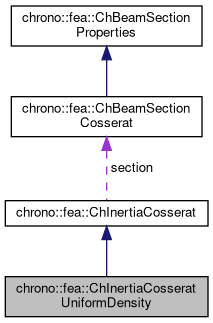

Collaboration diagram for chrono::fea::ChInertiaCosseratUniformDensity:

Public Member Functions
	ChInertiaCosseratUniformDensity (double density, double Area, double Iyy_area_moment, double Izz_area_moment)
virtual double	GetMassPerUnitLength () override
	Compute mass per unit length, ex.SI units [kg/m] In this case is simply \( \mu = \rho A \), given area in [m^2] and with \( \rho \) density in [kg/m^3].
virtual double	GetInertiaJxxPerUnitLength () override
	Compute the Ixx component of the inertia tensor per unit length, i.e. More...
virtual double	GetInertiaJyyPerUnitLength () override
	Compute the Jyy component of the inertia tensor per unit length, i.e. More...
virtual double	GetInertiaJzzPerUnitLength () override
	Compute the Jzz component of the inertia tensor per unit length, i.e. More...
void	SetDensity (const double md)
	Set the volumetric density, assumed constant in the section. Ex. SI units: [kg/m^3].
double	GetDensity () const
void	SetArea (const double ma)
	Set the area of section for computing mass properties. Ex. SI units: [m^2].
double	GetArea () const
void	SetIyy (double mi)
	Set the Iyy second moment of area of the beam (for bending about y in xz plane), defined as \( I_y = \int_\Omega \rho z^2 dA \). More...
double	GetIyy () const
void	SetIzz (double mi)
	Set the Izz second moment of area of the beam (for bending about z in xy plane), defined as \( I_z = \int_\Omega \rho y^2 dA \). More...
double	GetIzz () const
virtual void	SetAsRectangularSection (double width_y, double width_z, double density)
	Shortcut: set Izz, Iyy, Area and density at once, given the y and z widths of the beam assumed with rectangular shape, and volumetric density. More...
virtual void	SetAsCircularSection (double diameter, double density)
	Shortcut: set Izz, Iyy, Area and density at once, given the diameter the beam assumed with circular shape, and volumetric density. More...

Additional Inherited Members
Public Attributes inherited from chrono::fea::ChInertiaCosserat
ChBeamSectionCosserat *	section

Constructor & Destructor Documentation

ChInertiaCosseratUniformDensity()

chrono::fea::ChInertiaCosseratUniformDensity::ChInertiaCosseratUniformDensity ( double  density, double  Area, double  Iyy_area_moment, double  Izz_area_moment  )

inline

Parameters

density	the density fo the material [kg/m^3], assumed constant
Area	area of the section, [m^2]
Iyy_area_moment	second moment of area [m^4] about Y
Izz_area_moment	second moment of area [m^4] about Z

Member Function Documentation

GetInertiaJxxPerUnitLength()

virtual double chrono::fea::ChInertiaCosseratUniformDensity::GetInertiaJxxPerUnitLength ( )

inlineoverridevirtual

Compute the Ixx component of the inertia tensor per unit length, i.e.

the part associated with rotation about the beam direction. In this case it is \( J_{xx} = \rho I_p \), where \( I_p = I_z + I_y \) is the polar moment of area.

Implements chrono::fea::ChInertiaCosserat.

GetInertiaJyyPerUnitLength()

virtual double chrono::fea::ChInertiaCosseratUniformDensity::GetInertiaJyyPerUnitLength ( )

inlineoverridevirtual

Compute the Jyy component of the inertia tensor per unit length, i.e.

the part associated with rotation of the section on its Y axis. Defined as: \( J_{yy} = \int_\Omega \rho z^2 dA \), with \( \rho \) density in [kg/m^3]. For uniform density it is \( J_{yy} = \rho I_y \), where \( I_y = \int_\Omega \rho z^2 dA \) is the second moment of area.

Implements chrono::fea::ChInertiaCosserat.

GetInertiaJzzPerUnitLength()

virtual double chrono::fea::ChInertiaCosseratUniformDensity::GetInertiaJzzPerUnitLength ( )

inlineoverridevirtual

Compute the Jzz component of the inertia tensor per unit length, i.e.

the part associated with rotation of the section on its Z axis. Defined as: \( J_{zz} = \int_\Omega \rho y^2 dA \), with \( \rho \) density in [kg/m^3]. For uniform density it is \( J_{zz} = \rho I_z \), where \( I_z = \int_\Omega \rho y^2 dA \) is the second moment of area.

Implements chrono::fea::ChInertiaCosserat.

SetAsCircularSection()

void chrono::fea::ChInertiaCosseratUniformDensity::SetAsCircularSection ( double  diameter, double  density  )

virtual

Shortcut: set Izz, Iyy, Area and density at once, given the diameter the beam assumed with circular shape, and volumetric density.

Assuming centered section.

SetAsRectangularSection()

void chrono::fea::ChInertiaCosseratUniformDensity::SetAsRectangularSection ( double  width_y, double  width_z, double  density  )

virtual

Shortcut: set Izz, Iyy, Area and density at once, given the y and z widths of the beam assumed with rectangular shape, and volumetric density.

Assuming centered section.

SetIyy()

void chrono::fea::ChInertiaCosseratUniformDensity::SetIyy ( double  mi )

inline

Set the Iyy second moment of area of the beam (for bending about y in xz plane), defined as \( I_y = \int_\Omega \rho z^2 dA \).

Note: some textbook calls this Iyy as Iy. Note: it can correspond to the same Iyy that you used for the elasticity, ex. in ChElasticityCosseratSimple. Ex. SI units: [m^4]

SetIzz()

void chrono::fea::ChInertiaCosseratUniformDensity::SetIzz ( double  mi )

inline

Set the Izz second moment of area of the beam (for bending about z in xy plane), defined as \( I_z = \int_\Omega \rho y^2 dA \).

Note: some textbook calls this Izz as Iz. Note: it can correspond to the same Izz that you used for the elasticity, ex. in ChElasticityCosseratSimple. Ex. SI units: [m^4]

---

The documentation for this class was generated from the following files:

• /builds/uwsbel/chrono/src/chrono/fea/ChBeamSectionCosserat.h
• /builds/uwsbel/chrono/src/chrono/fea/ChBeamSectionCosserat.cpp
