chrono::peridynamics::ChMatterPeri< T_per_node, T_per_bond > Class Template Reference
Description
template<class T_per_node = ChMatterDataPerNode, class T_per_bond = ChMatterDataPerBond>
class chrono::peridynamics::ChMatterPeri< T_per_node, T_per_bond >
Sub-base templated class for assigning material properties (elasticity, viscosity etc) to a cluster of peridynamics nodes.
It must be inherited by classes that define specific materials, and those may optionally use per-edge and per-node data structures by inheriting ChMatterDataPerNode and ChMatterDataPerBond and passing them as template parameters.
#include <ChMatterPeridynamics.h>
Inheritance diagram for chrono::peridynamics::ChMatterPeri< T_per_node, T_per_bond >:

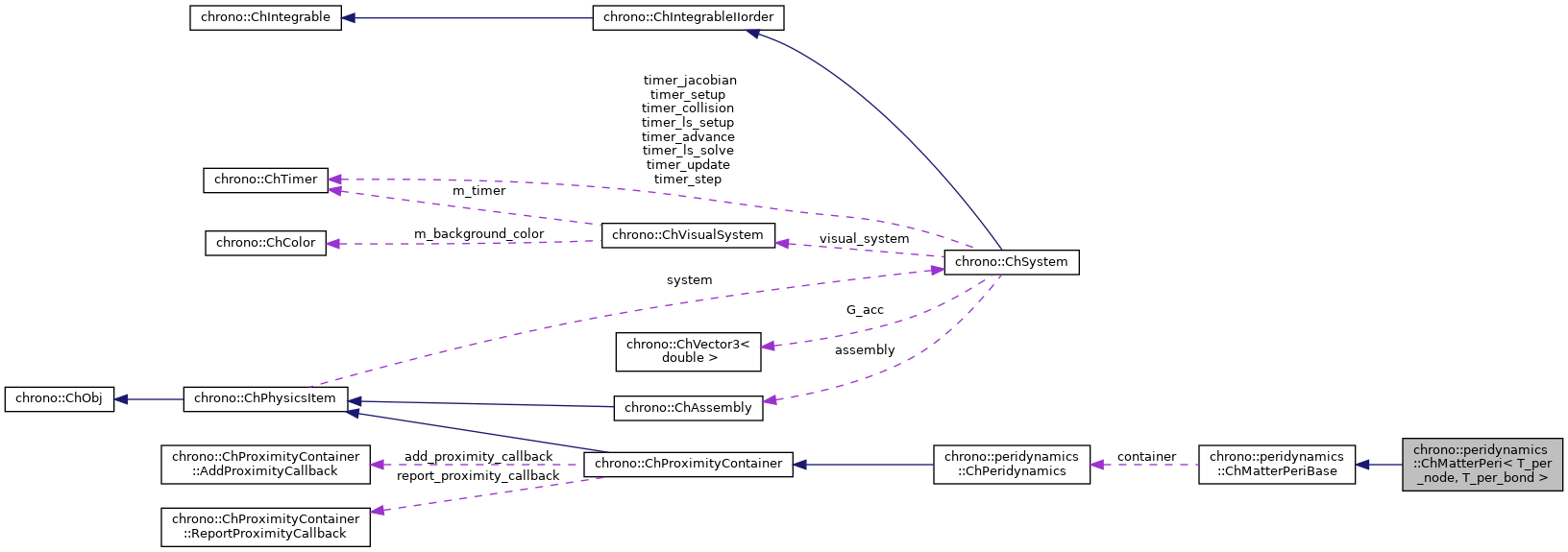

Collaboration diagram for chrono::peridynamics::ChMatterPeri< T_per_node, T_per_bond >:
Public Member Functions | |
| ChMatterPeri () | |
| Build a cluster of nodes for peridynamics. More... | |
| ChMatterPeri (const ChMatterPeri &other) | |
| unsigned int | GetNnodes () const |
| Get the number of nodes. | |
| unsigned int | GetNbonds () const |
| Get the number of bonds. | |
| const std::unordered_map< ChNodePeri *, T_per_node > & | GetMapOfNodes () |
| Access the node container. | |
| std::unordered_map< std::pair< ChNodePeri *, ChNodePeri * >, T_per_bond > & | GetMapOfBonds () |
| Access the bonds container. | |
| virtual std::shared_ptr< ChNodePeri > | AddNode (std::shared_ptr< ChNodePeri > mnode) override |
| Add a node to the particle cluster. | |
| virtual bool | RemoveNode (std::shared_ptr< ChNodePeri > mnode) override |
| Remove a node from the particle cluster. | |
| virtual bool | AddProximity (ChNodePeri *nodeA, ChNodePeri *nodeB) override |
| Add a proximity: this will be called thousand of times by the broadphase collision detection. More... | |
| virtual void | ComputeForcesReset () override |
| CONSTITUTIVE MODEL - INTERFACE TO IMPLEMENT: (optionally) Base behaviour: More... | |
| virtual void | ComputeCollisionStateChanges () override |
| CONSTITUTIVE MODEL - INTERFACE TO IMPLEMENT: (optionally) Changes the collision model of nodes, from collision to no collision, etc., ex when an interface is generated, depending on the evolution of the system. More... | |
| void | SetContactMaterial (const std::shared_ptr< ChContactMaterial > &mnewsurf) |
| Set the material surface for 'boundary contact'. | |
| std::shared_ptr< ChContactMaterial > & | GetContactMaterial () |
| Set the material surface for 'boundary contact'. | |
| virtual void | ArchiveOut (ChArchiveOut &marchive) |
| Method to allow serialization of transient data to archives. | |
| virtual void | ArchiveIn (ChArchiveIn &marchive) |
| Method to allow de-serialization of transient data from archives. | |
 Public Member Functions inherited from chrono::peridynamics::ChMatterPeriBase | |
| virtual void | ComputeForces ()=0 |
| CONSTITUTIVE MODEL - INTERFACE TO IMPLEMENT: IMPORTANT Add the forces caused by this material to the ChNodePeri::F vector of each ChNodePeri. More... | |
| virtual void | SetupInitial () |
| CONSTITUTIVE MODEL - INTERFACE TO IMPLEMENT: (optionally) This function is called where system construction is completed, at the beginning of the simulation. More... | |
| virtual void | Setup () |
| CONSTITUTIVE MODEL - INTERFACE TO IMPLEMENT: (optionally) This function is called at each time step. More... | |
| virtual unsigned int | GetNumConstraints () |
| Get the number of scalar constraints (maybe used for implicit materials) | |
| virtual void | IntLoadResidual_CqL (const unsigned int off_L, ChVectorDynamic<> &R, const ChVectorDynamic<> &L, const double c) |
| virtual void | IntLoadConstraint_C (const unsigned int off, ChVectorDynamic<> &Qc, const double c, bool do_clamp, double recovery_clamp) |
| Takes the term C, scale and adds to Qc at given offset: Qc += c*C. More... | |
| virtual void | InjectConstraints (ChSystemDescriptor &descriptor) |
| Register with the given system descriptor any ChConstraint objects associated with this item. | |
| virtual void | LoadConstraintJacobians () |
| Compute and load current Jacobians in encapsulated ChConstraint objects. | |
| virtual void | IntToDescriptor (const unsigned int off_v, const ChStateDelta &v, const ChVectorDynamic<> &R, const unsigned int off_L, const ChVectorDynamic<> &L, const ChVectorDynamic<> &Qc) |
| virtual void | IntFromDescriptor (const unsigned int off_v, ChStateDelta &v, const unsigned int off_L, ChVectorDynamic<> &L) |
| ChPeridynamics * | GetContainer () const |
| void | SetContainer (ChPeridynamics *mc) |
Protected Attributes | |
| std::unordered_map< ChNodePeri *, T_per_node > | nodes |
| nodes | |
| std::unordered_map< std::pair< ChNodePeri *, ChNodePeri * >, T_per_bond > | bonds |
| bonds | |
| std::shared_ptr< ChContactMaterial > | matsurface |
| data for surface contact and impact | |
| Protected Attributes inherited from chrono::peridynamics::ChMatterPeriBase | |
| ChPeridynamics * | container = 0 |
Constructor & Destructor Documentation
◆ ChMatterPeri()
template<class T_per_node = ChMatterDataPerNode, class T_per_bond = ChMatterDataPerBond>
|
inline |
Build a cluster of nodes for peridynamics.
By default the cluster will contain 0 particles.
Member Function Documentation
◆ AddProximity()
template<class T_per_node = ChMatterDataPerNode, class T_per_bond = ChMatterDataPerBond>
|
inlineoverridevirtual |
Add a proximity: this will be called thousand of times by the broadphase collision detection.
If the two nodes are of proper type, and if bond not yet present, add a T_per_node structure to this->bonds and return true, otherwise return false.
Implements chrono::peridynamics::ChMatterPeriBase.
◆ ComputeCollisionStateChanges()
template<class T_per_node = ChMatterDataPerNode, class T_per_bond = ChMatterDataPerBond>
|
inlineoverridevirtual |
CONSTITUTIVE MODEL - INTERFACE TO IMPLEMENT: (optionally)
Changes the collision model of nodes, from collision to no collision, etc., ex when an interface is generated, depending on the evolution of the system.
It is run right before the collision detection compute proximyty bonds & contacts. This may add/remove collision models, or may change them. The base behavior is: create collision models when mnode->IsRequiringCollision(), remove if not.
Implements chrono::peridynamics::ChMatterPeriBase.
◆ ComputeForcesReset()
template<class T_per_node = ChMatterDataPerNode, class T_per_bond = ChMatterDataPerBond>
|
inlineoverridevirtual |
CONSTITUTIVE MODEL - INTERFACE TO IMPLEMENT: (optionally) Base behaviour:
- resets the ChNodePeri::F vector of each ChNodePeri to zero.
- adds or remove collision model from the collision engine
- resets is_fluid optimization flag (is not is_fluid, bonds are persistent as an elastic, and collision engine not needed)
Implements chrono::peridynamics::ChMatterPeriBase.
The documentation for this class was generated from the following file:
- /builds/uwsbel/chrono/src/chrono_peridynamics/ChMatterPeridynamics.h
